Description
High application versatility
In the pipe, over the top or in the manhole, the Leica Piper always delivers outstanding performance.

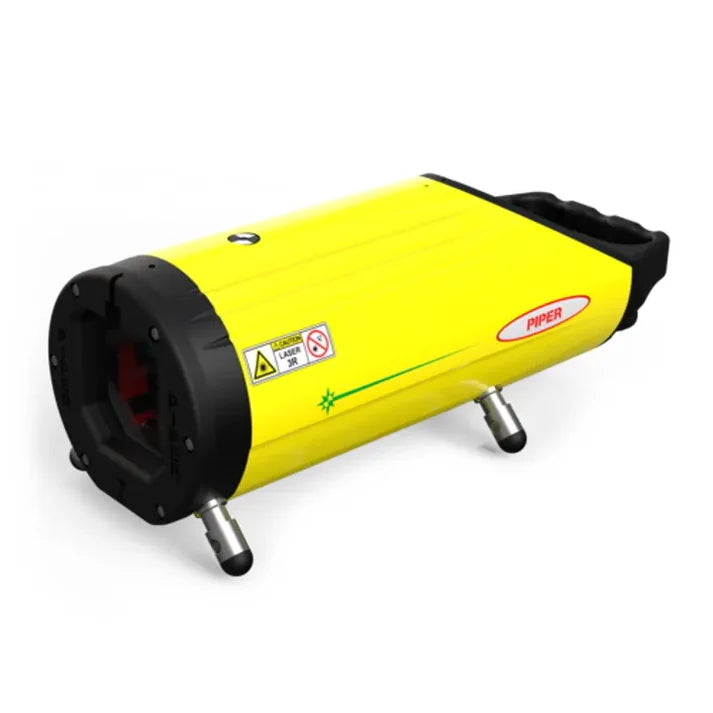

- In the pipe - Piper's self-centring, rubber tipped feet and robust, cast-aluminium housing assures the highest reliability in pipeline construction.
- Over the top - In above-ground tasks, the optional scope and the mount kit provide user-friendly solution for simple setup and operation.
- In the manhole - In manhole applications, Piper's unique design and wide stable base make it easy to set up even in the tightest inverts.
- Piper is 100% waterproof (sealed to IP X8 protection standard) and has a positive pressure nitrogen seal to deliver the ultimate reliability.
Piper hits the target every time
Piper is ideal anywhere line and grade is required.

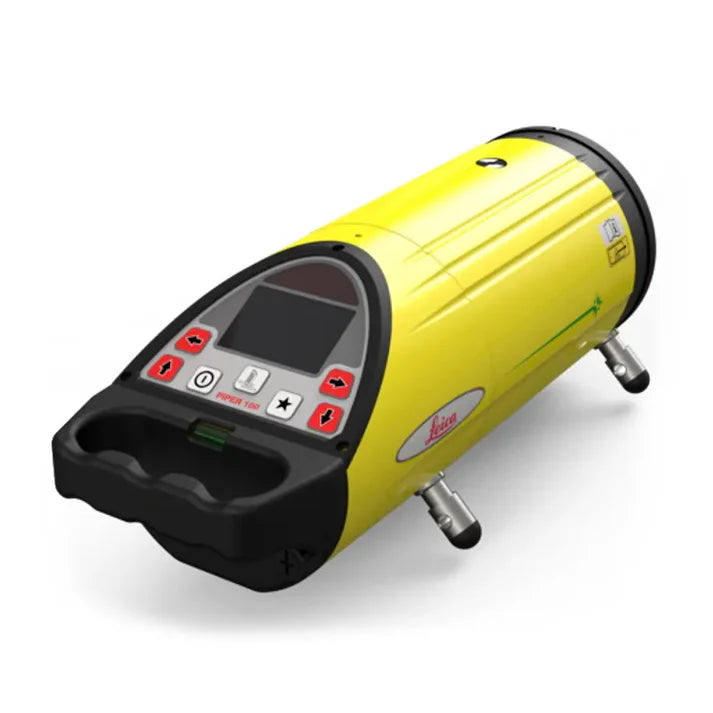

- Large clear display for easy grade reading. Line position, battery status and level indication.

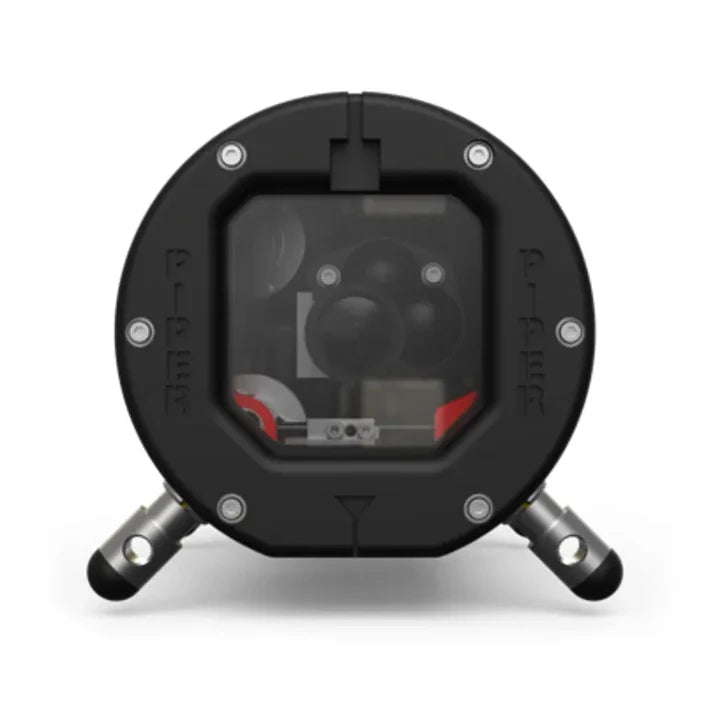

- Piper's bright, visible beam is focused to maintain its crisp, clear spot and size over long distances.
- Automatic grade compensation easily identifies and corrects grade errors. Piper automatically self-levels over a full grade range and eliminates the need to tip the laser for steep slopes.
Increased productivity with smart features
Piper 100 provides pipe and sewer contractors with smart, user-friendly features for enhanced application performance.
- Strobe Mode - its multi-functional remote control strobes the laser beam for increased visibility.
- Top pivot point (Lighted Pivot Point) and Battery Saving Mode.
Specifications
| Laser Beam Colour | Green |
| Wave Length | 520nm |
| Lasser Class | 3R |
| Max average radiant power | 4.8mW |
| Working range | Up to 200m |
| Grade Range | -10% to +25% |
| Self-levelling Range | -15% to +30% |
| Line Movement | 6m @ 30m |
| Battery | Li-Ion, up to 40 hours |
| Charging Time | 4 hours |
| Operating temperature | -20°C to +50°C |
| Dimensions | 96mm x 267mm |
| Weight | 2.0Kg |
| Housing | Cast aluminium |
| Wireless remote distance |
Front 150m Back 10m |
| Self levelling accuracy | +/-1.5mm at 30m |
| Auto targeting | No |
| Warranty | 5 years |
In The Box
- Leica Piper 100G Green Beam pipe laser
- Rugged carrying case

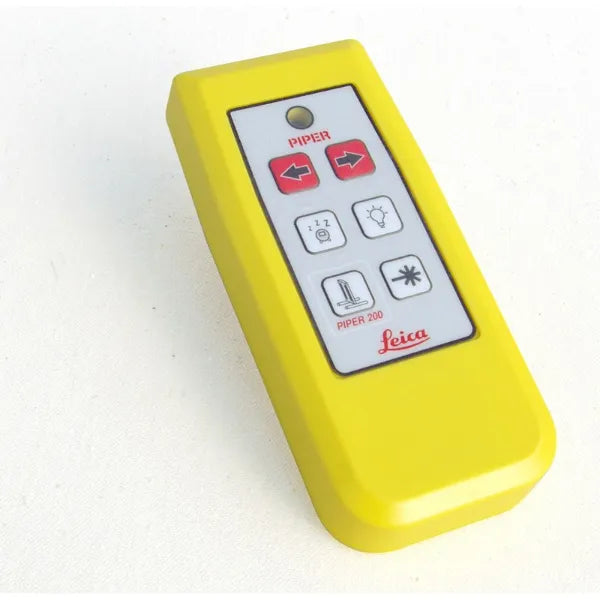

- Remote control

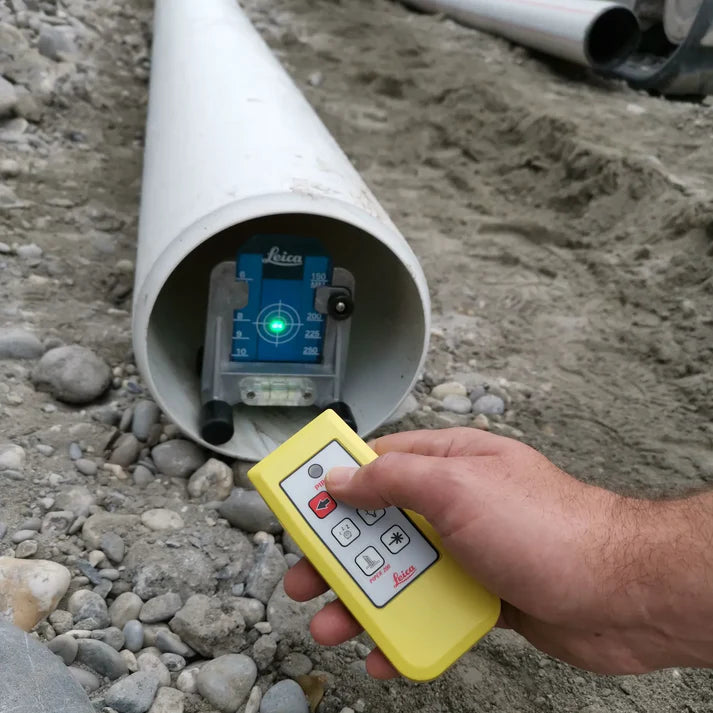

- Target assembly
- Li-ion rechargable battery
- Battery charger with AC and 12V car adapter
- Self-centering feet set (150mm / 6")
- 5-year warranty
