Description

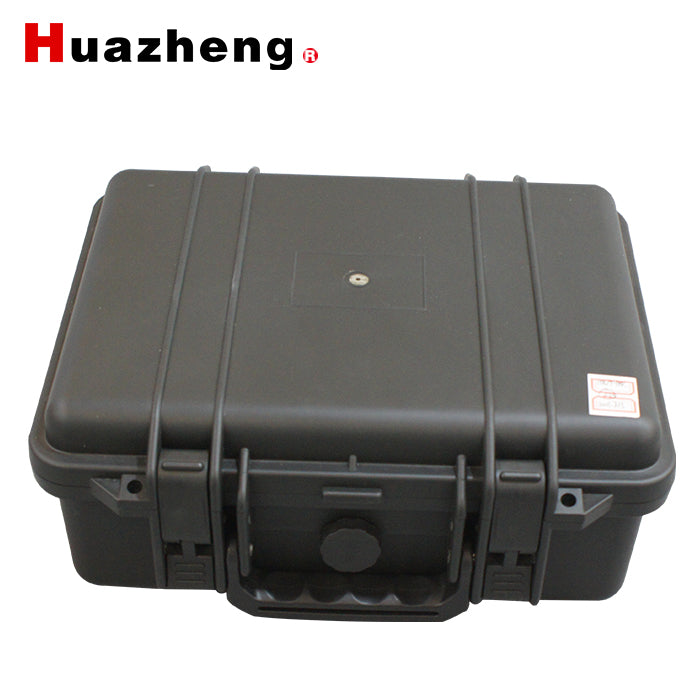

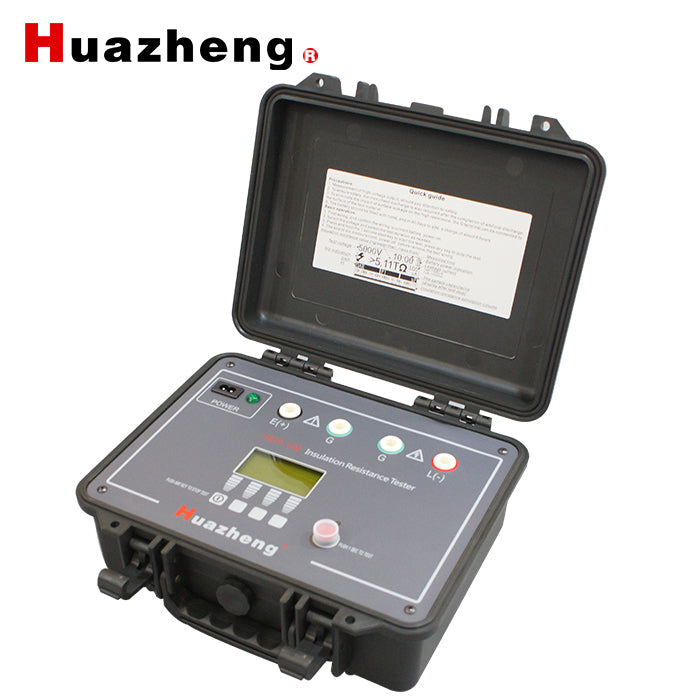

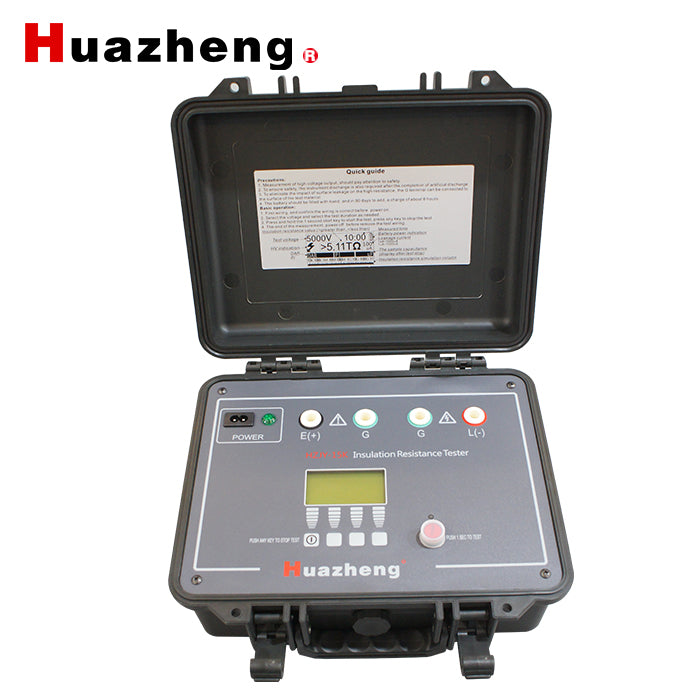

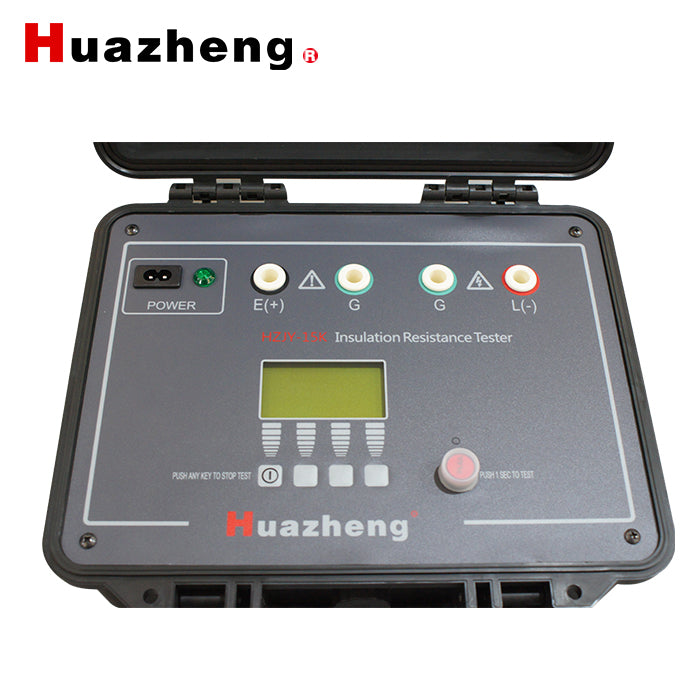

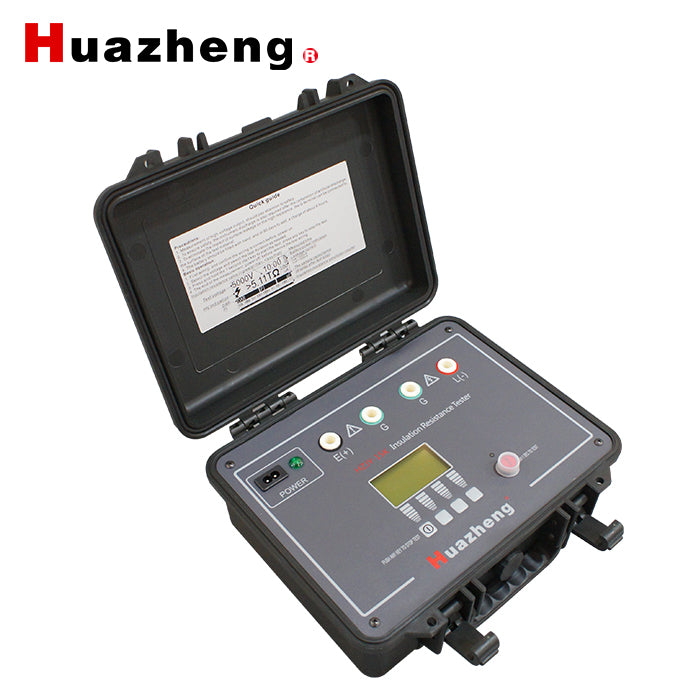

Huazheng Electric High-voltage insulation resistance tester, with 5 range: 500V, 1000V, 2500V, 5000V, 10000V, 15000V,test up to 15TΩ, manual voltage regulation function.
● Strict accordance with the safety standards for design
● Insulation resistance range 15TΩ @ 15 kv
● Short circuit current can be adjusted, maximum 5mA (Can be ordered as high as 10mA, short circuit current products).
● Automatic display polarization index (PI), induced electric absorption test values than (DAR), and can test the leakage current and capacitance.
● Anti-jamming performance is superior, the interference current reaches 2 mA, still ensure accuracy of test instruments.
● 2 methods for power: use of lithium ion batteries, battery life can be up to 4 hours (10000V @ 100MΩ).
● Insulation resistance simulation column.
● Digital filtering functions, external influence deviation display value causing mitigation point using filter function.
● Perfect protection function, and the spare fuse prompt functions.
Specification Parameter
● Safety Standard
IEC 61010-1 CAT.IV 600V
IEC 61326 EMC specification: test, control and electrical equipment for testing
IEC60529 IP64 （Outer closed state）
● battery：16.8V Lithium ion rechargeable battery
● Battery Life：10000V@100M， 4 hour
● size（L x W x H）：37cm x 27cm x 17cm
● weight：3.6kg
● Test voltage accuracy: the nominal value 100% to 110%
● Voltage measurement accuracy：5%+3V
● Current test range：10mA
● current measure precision：5%+0.2nA
● short-circuit current： 5mA
● Capacitance test range：20uF
● Capacitance testing accuracy：15%+0.03uF
● Insulation resistance testing range and accuracy （T:23±5ºC ，RH :45 – 75%）
|
range accuracy |
500V |
1000V |
2500V |
5000V |
10000V |
|
Unspecified |
<1M |
<1M |
<1M |
<1M |
<1M |
|
5% |
1M-10G |
1M-20G |
1M-100G |
1M-100G |
1M-200G |
|
20% |
10G -100G |
20G-200G |
100G-1T |
100G-1T |
200G-2T |
|
Unspecified |
> 100G |
> 200G |
> 1T |
> 1T |
> 2T |
|
range accuracy |
15000V |
|||
|
Unspecified |
<1M |
|||
|
5% |
1M -300G |
|||
|
20% |
300G -3T |
|||
|
Unspecified |
> 3T |
