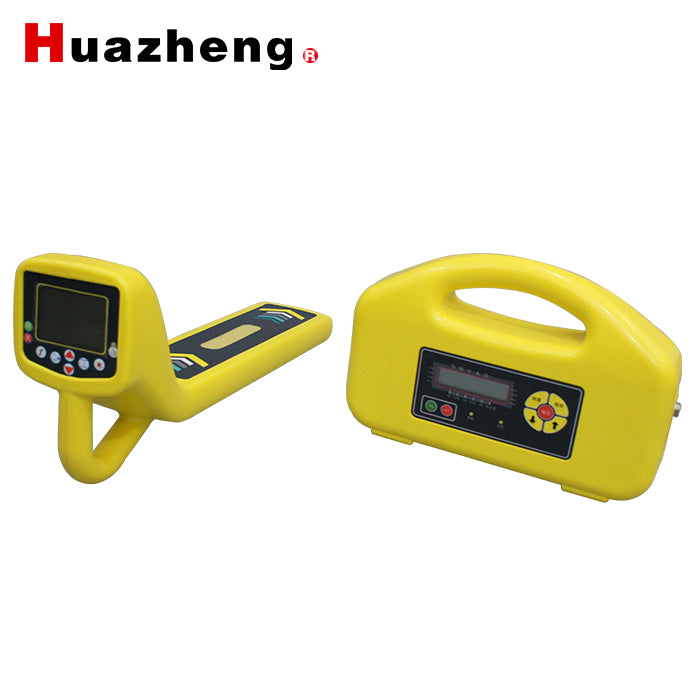

Description
HZ-4000A full-frequency pipeline detector is the preferred equipment specially detecting various kinds of pipelines for oil (gas) transportation, water supply, drainage, gas, heat, and industry, etc. and various cables for electricity and telecommunication, etc. used by such underground pipeline design organizations as professional pipeline detection, pipeline management and maintenance, municipal administration planning and construction, power supply, building and construction. It’s also the optimum replacement for traditional underground pipeline detectors.
[Characteristics]
1. Adoption of DSP processors, having a higher calculation speed and accuracy;
2. The orientation function available to indicate the pipeline running, making location faster;
3. The 10W broadband transmitter used, applicable to various environments;
4. The Lithium battery pack used to supply power for both the receiver and the transmitter, being energy-efficient and environmental-friendly, able to save battery costs of RMB 3000 to 5000 yuan annually.
[Working Principles]
The full-frequency detector detects underground pipelines electromagnetically, which applies signals to metal pipelines through the transmitter, generates the piping currents in metal pipelines and the secondary magnetic field around pipelines, and measures the secondary magnetic field of pipelines on the ground through the receiver, in order to accurately determine the location, buried depth, running direction, route and signal current intensity of pipelines.
[Technical Parameters]

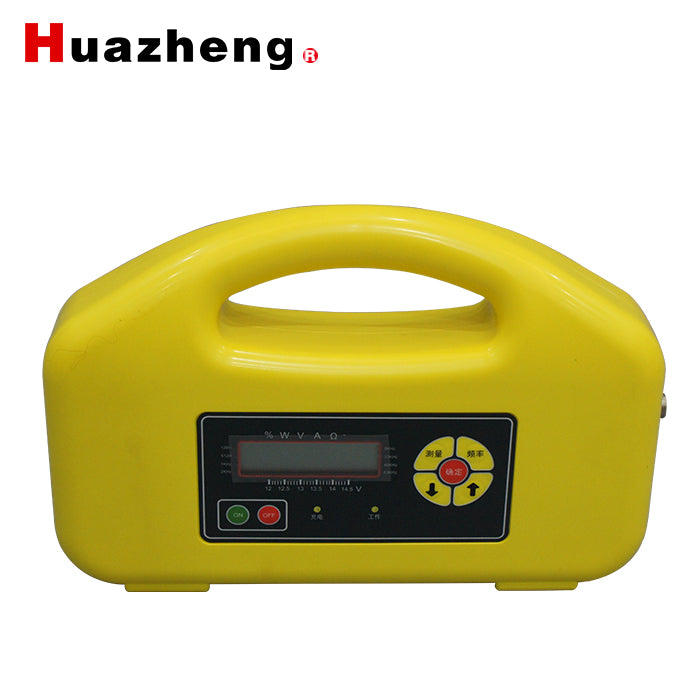

Transmitter:
Function: to apply the location signal of a certain frequency onto pipelines
Output modes: induction, direct link, clamping
Working frequencies: 128Hz, 512Hz, 1KHz, 2KHz, 8KHz, 33KHz, 65KHz, 83KHz
Frequency configuration at various modes:
Induction mode:65KHz, 83KHz
Direct link mode:128Hz, 512Hz, 1KHz, 2KHz, 8KHz, 33KHz, 65KHz, 83KHz
Clamping mode:33KHz
Maximum power output:10W
Maximum voltage output:60V
Maximum current output:1A
Power supply: dual power supply, Lithium battery pack (energy-efficient and environmental-friendly)
Continuous working time:
1W 12 hours
5W 8 hours
10W 5 hours
Weight:2.6Kg
Ambient temperature:-20℃-50℃
Quality standard:ISO9001:2008

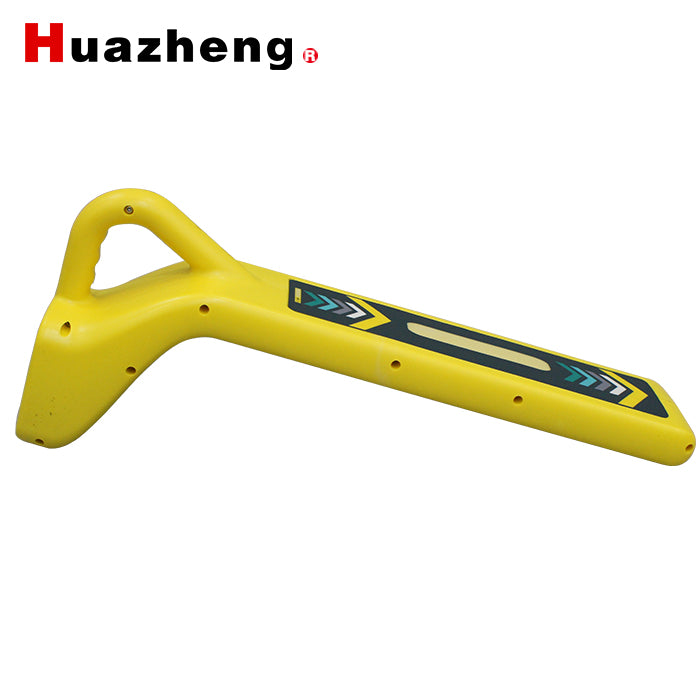

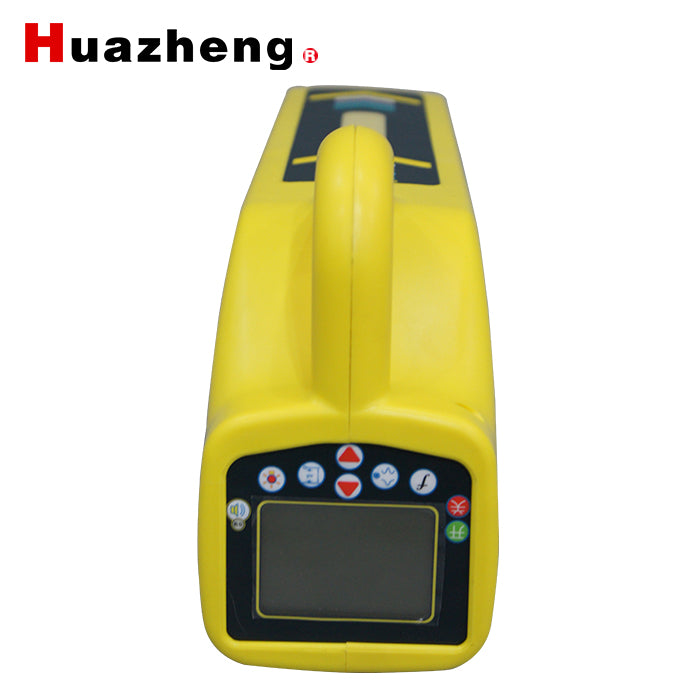

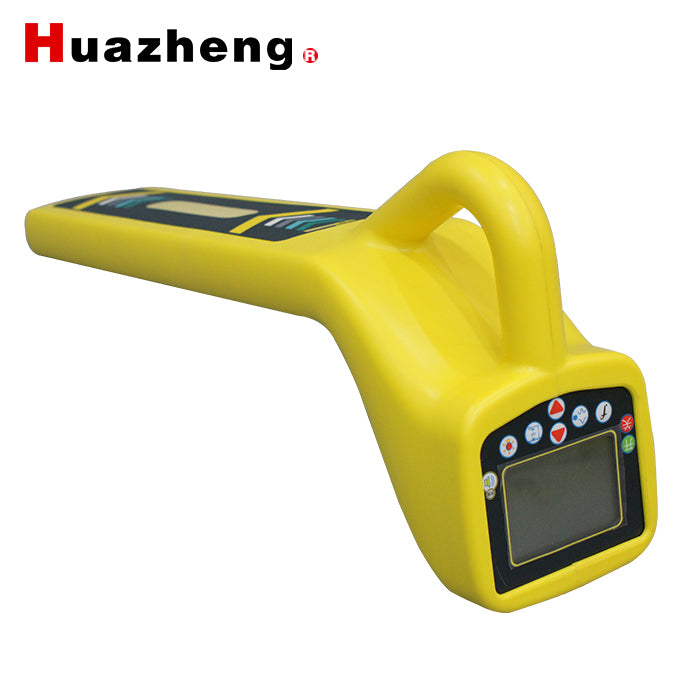

Receiver:
Purpose: location of underground pipelines and cables (able to measure the position, running direction, depth, and current of underground pipelines)
Location modes:
Peak mode: two horizontal coils used
Broad peak mode: one horizontal coil used
Valley mode: one vertical coil, having the function of left and right orientation
Receive frequencies: 50Hz, 100Hz, radio, 128Hz, 512Hz, 1KHz, 2KHz, 8KHz, 33KHz, 65KHz, and 83KHz
Gain control: automatic gain, range of 0-100dB
Location accuracy: 5% of depth (range of depth: 0-3meter)
10% of depth (range of depth: >3meter)
Measurement accuracy of currents: ≤5% of actual current
Range of measurement: 0-6m
Power supply: Lithium battery pack (energy-efficient and environmental-friendly)
Working time: an average of 8 hours
Weight: 1.8kg
Ambient temperature: -20℃-50℃
Quality standard: ISO9001:2008
[Standard Configuration]

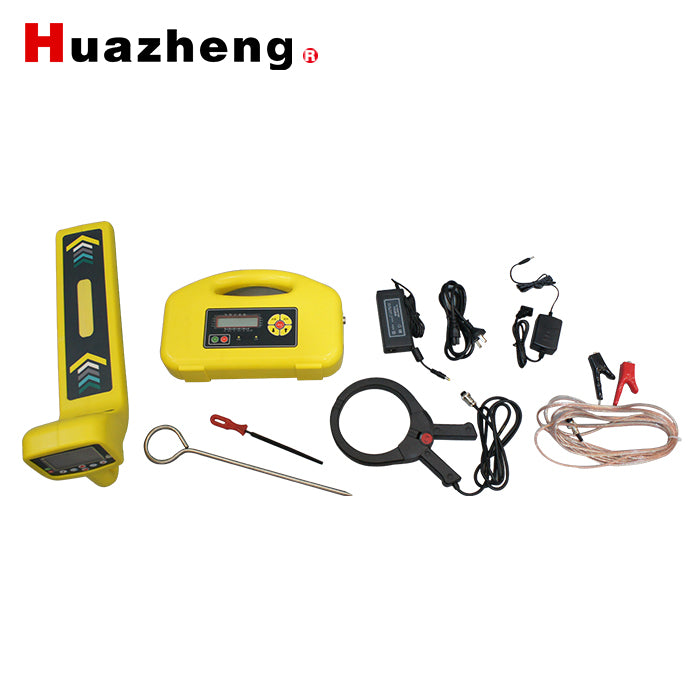

10W broadband large-power transmitter, full-frequency receiver, clamp, direct link line, earthing bar, transmitter charger, receiver charger, packing box, and user’s manual
