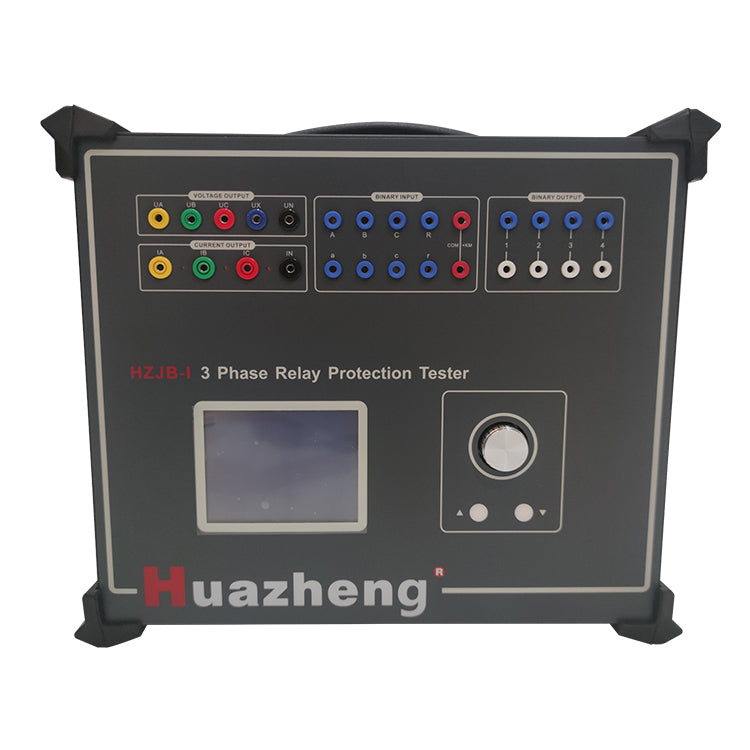

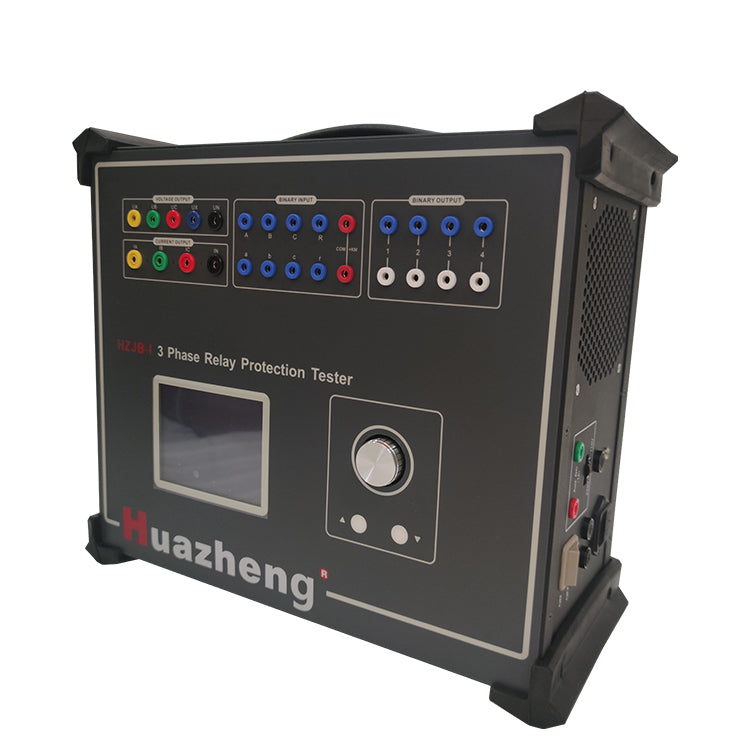

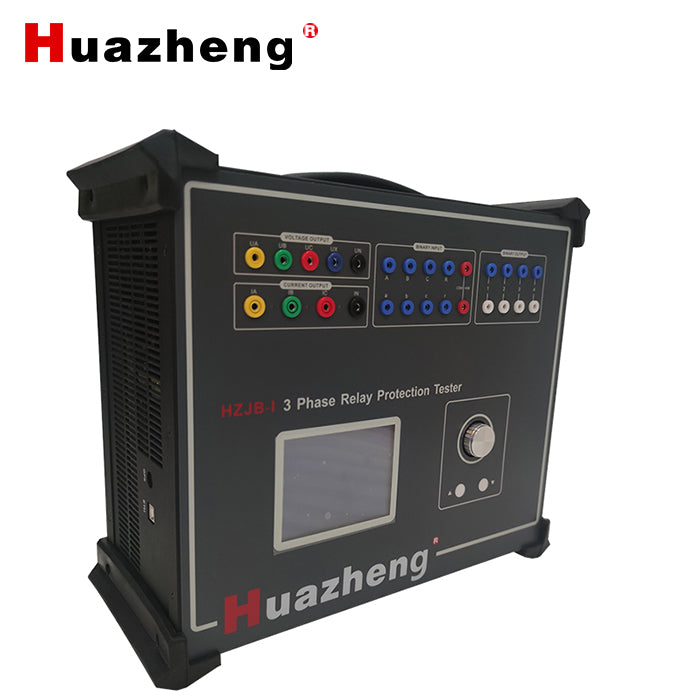

Description
1. secondary injection relay test set Features:
Strong function of software
The amount of switch quantity contacts is rich
Large LCD screen
Self-protection
Independent DC power output
Cost-effective
2. secondary injection relay test set Parameter
-
Alternating current output
Output accuracy: 0.5magnitude
Phase current output (effective value): 0~40A
Three parallel phase current output (effective value): 0~120A
Phase current value with long time under permission (effective value): 10A
Phase current maximum power output: 420VA
Three parallel phase current maximum power output: 900VA
Three parallel phase current maximum work time: 10s
Frequency range (base wave): 20~1000Hz
Harmonic frequency number: 1~20 time
-
Direct current output
Output accuracy: 0.5magnitude
Current output: 0 ~ ± 10 A/each phase, 0 ~ ± 30 A/every three parallel
Maximum output of load voltage: 20v
-
Alternating voltage output
Output accuracy: 0.5magnitude
Phase voltage output (RMS): 0 ~ 120v
Line voltage output (RMS): 0 ~ 240v
Phase voltage/line voltage power output: 80VA/100VA
Frequency range (base wave): 20 ~ 1000Hz
Harmonic frequency number: 1 ~ 20 times
-
Direct voltage output
Output accuracy: 0.5magnitude
Phase voltage output amplitude: 0 ~ +160v
Line voltage output amplitude: 0 ~ + 320v
Phase voltage/line voltage power output: 70VA/140VA
