Description

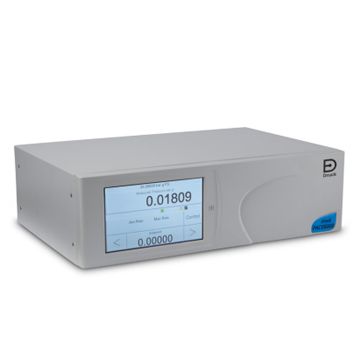

The Druck PACE6000, Druck pressure controller, designed for test bench, benchtop and rack mount calibration, and automated test applications. Up to 210 bar, Accuracy 0.0016% Rdg (+0.0033% FS).
A new generation of high precision Druck pressure controller, designed for test bench, benchtop and rack mount calibration, and automated test applications.
Modularity increases user flexibility, reduces downtime, and lowers the overall cost of ownership.
Features
- Dua Pressure Controller
• With two PACE CM control modules fitted the PACE6000 can be used in single, auto-ranging or simultaneous dual pressure control mode*
• Aeronautical option enabling full control in aeronautical units
• No module pressure range ratio limit
• High-speed pressure control
• Up to 210 bar (3000 psi/21 MPa) gauge and absolute
• Precision to 0.001% FS over the calibrated temperature range
• Accuracy 0.0016% Rdg (+0.0033% FS)
• Long-term stability to 0.0025% FS per annum
• Barometric reference option
• Utilises Druck’s new unique range of piezo-resistive and TERPS pressure sensor technology
• 28 selectable pressure units and 4 user-defined units
• Switch Test, Leak Test, Test Program, Burst Test, Analogue output, and Volt Free Contact options
• Aeronautical option
• Negative gauge calibration included as standard
• High-resolution colour touch screen operation
• Intuitive icon task-driven menu structure
• Compatible with software packages
• RS232, IEEE connectivity, Ethernet, and USB as standard
• Aeronautical Option (PACE6000 only, to be used with PACE CM2-A control modules)
The new PACE6000 pneumatic modular pressure controller brings together the latest control and measurement technology from Druck to offer an elegant, fast, flexible, and economical solution to pressure control for automated production, test, and calibration.
The PACE employs full digital control to provide high control stability and high slew rate, while its digitally characterized pressure sensor offers the quality, stability, higher bandwidth, and precision associated with this latest generation of piezo-resistive and TERPS devices.
For more technical specifications, please download the Druck PACE6000 datasheet.
If you would like more information please feel free to discuss your requirements with one of our technical sales team, please email us at info@zenithrental.com.au
