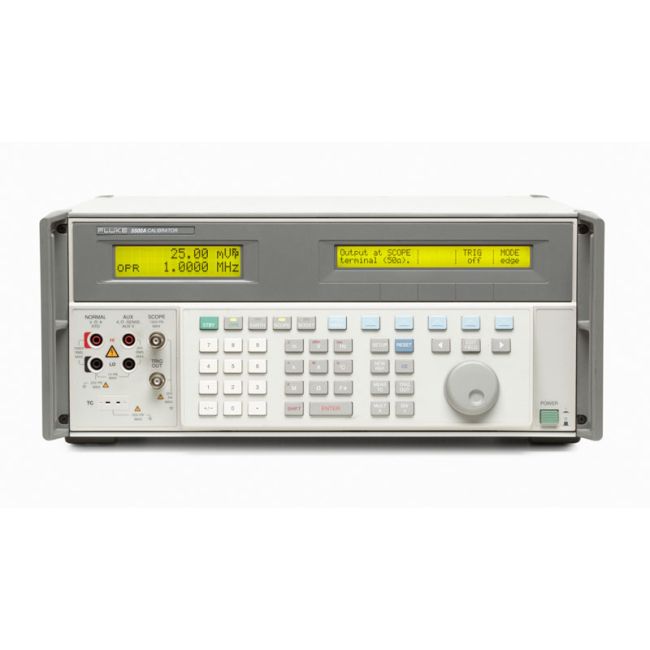

5500A Multi-Product Calibrator

5500A Multi-Product Calibrator

View full details

Description

Specifications: 5500A Multi-Product Calibrator

Technical Specifications
Voltage DC Range:   0 to ±1020V
Best 1 Year Specification:   ±50 ppm of setting
Current DC Range:   0 to ±11A
Best 1 Year Specification:   ±0.01% of setting
Resistance Range:   0 to 3.29.999 MΩ
Best 1 Year Specification:   ±0.009% of setting
Voltage AC Range:   1 mV to 1020V
 10 Hz to 500 kHz, Sine
Best 1 Year Specification:   ±0.03% of setting
Current AC Range:   29 m A to 11A
 10 Hz to 10 kHz, Sine
Best 1 Year Specification:   ±0.06% of setting
Capacitance Range:   0.33 nF to 1.1 mF
Best 1 Year Specification:   ±0.25% of setting
Thermocouple Source and Measure Range:   -250°C to +2316°C (11 types)
Best 1 Year Specification:   ± 0.14°C of setting
RTD Source Range:   -200°C to +630°C
 (8 types)
Best 1 Year Specification:   ±0.03°C of setting
DC Power Range:   109 mW to 11 kW
Best 1 Year Specification:   ± 0.08% of setting
AC Power Range:   109 mW to 11 kW
 45-65 Hz, PF=1
Best 1 Year Specification:   ± 0.15% of setting
Phase Range:   0 to ± 179.99°
Best 1 Year Specification:  ±0.15°
Frequency Range:   0.01 Hz to 2.0 MHz
Best 1 Year Specification:   ±25 ppm of setting
General Specifications
Warm up Time Twice the time since last warmed up, to a maximum of 30 minutes
Settling Time Less than 5 seconds for all functions and ranges except as noted
Standard Interfaces IEEE-488 (GPIB), RS-232, 5725A (5500A only)
Temperature Performance Operating:   0°C to 50°C
Calibration:     (tcal): 15°C to 35°C
Storage:     -20°C to 70°C
Temperature Coefficient Temperature coefficient for temperatures outside tcal ± 5°C is 10% of the 90-day specification (or 1-year, as applicable) per °C
Relative Humidity Operating:   < 80% to 30°C, < 70% to 40°C, < 40% to 50°C
Storage:     < 95%, non-condensing
Altitude Operating:   3,050m (10,000 ft) maximum
Non-operating:   12,200m (40,000 ft) maximum
Safety Designed to comply with IEC 1010-1 (1992-1); ANSI/ISA-S82.01-1994; CAN/CSA-C22.2 No. 1010.1-92
Analog Low Isolation 20V
EMC Designed to comply with FCC Rules Part 15
Line Power Line Voltage (selectable):   100V, 120V, 220V, 240V
Line Frequency:  47 to 63 Hz
Line Voltage Variation:  : ± 10% about line voltage setting
Power Consumption 300 VA
Calibration Documentation 17025 accredited report of calibration included
Dimensions Height:  17.8 cm (7 in), standard rack increment, plus 1.5 cm (0.6 in) for feet on bottom of unit
Width:   43.2 cm (17 in), standard rack width
Depth:   47.3 cm (18.6 in) overall
Weight (without options) 20 kg (44 lbs.)
Absolute Uncertainty Definition 5500A and 5520A uncertainty specifications include stability, temperature coefficient, linearity, line and load regulation, and the traceability of the external standards used for calibration. You do not need to add anything to determine the total uncertainty of your calibrator for the temperature range indicated.
Specification Confidence Interval > 99%
