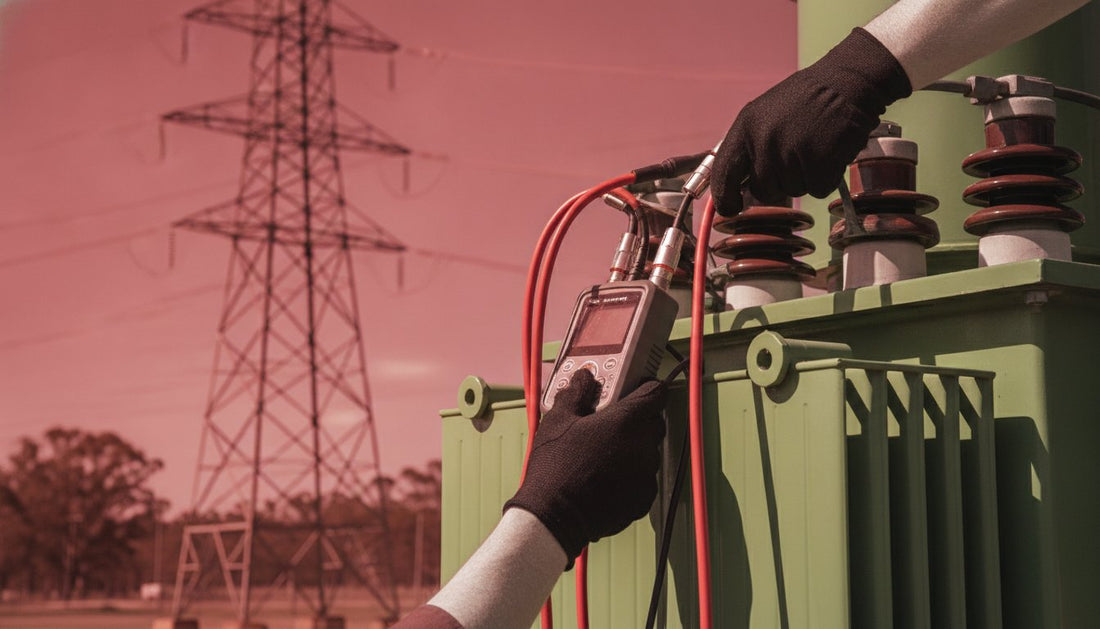

Transformer Turns Ratio Testing: The Definitive Guide for Australian Power Professionals

Is your current diagnostic protocol precise enough to detect the subtle magnetic shifts that precede a catastrophic transformer failure? For the discerning Australian power professional, transformer turns ratio testing is far more than a routine box-ticking exercise; it's a sophisticated interrogation of an asset's core health. You've likely encountered the irritation of inconsistent readings from subpar voltage control or the intricate hurdles of verifying on-load tap changers. These technical frictions don't just waste time; they introduce unacceptable risks into a grid already under immense pressure following high-profile incidents like the Waratah Super Battery failure.

We understand that maintaining the highest standards of reliability requires both impeccable expertise and the finest instrumentation. This guide promises to help you master the technical nuances of TTR testing while illustrating how elite rental solutions provide the NATA-calibrated precision needed for absolute compliance. We'll examine the updated requirements of AS 2467:2025, navigate the complexities of winding integrity, and reveal how rapid diagnostic testing protects your most valuable assets from the long lead times and high costs associated with modern equipment failures. By the end of this article, you'll have a clear roadmap for ensuring asset longevity through superior measurement practices.

The Critical Role of Transformer Turns Ratio (TTR) Testing in Asset Management

The integrity of a power grid rests upon the silent, steady performance of its transformers. At its heart, a transformer is a master of induction, relying on the precise physical relationship between its primary and secondary windings. By performing transformer turns ratio testing, engineers verify the exact quotient of these windings, ensuring the asset delivers the specific voltage transformations required for network stability. To appreciate the necessity of these diagnostic checks, one must revisit the foundational transformer principles that govern induction and magnetic flux. While the voltage ratio is directly proportional to the turns ratio, the current ratio is its inverse; any deviation in these figures suggests a physical or magnetic compromise within the tank.

For Australian utilities, this testing acts as the frontline of a sophisticated preventative maintenance strategy. It's not merely about confirming nameplate data. It's about detecting the whispers of failure before they become catastrophic outages. TTR testing identifies hidden defects such as shorted turns, which can lead to localized core heating and rapid insulation deterioration. In a landscape where equipment lead times are extending and the cost of failure is measured in millions, sourcing resilient assets is critical; you can learn more about robust power distribution transformers engineered for industrial performance. Ultimately, this high-precision interrogation of the magnetic circuit is an essential safeguard for asset longevity.

When to Perform TTR Testing

Precision begins at the point of arrival. Acceptance testing is vital for new assets to ensure no internal shifts occurred during the long journey to site. Beyond commissioning, routine maintenance cycles allow professionals to track the health of winding insulation over years of service. Perhaps most critically, post-fault diagnostics are mandatory following a circuit breaker trip or significant surge. These tests provide the immediate clarity needed to decide whether an asset can safely return to service or requires urgent intervention.

Regulatory Compliance and Standards

Maintaining a prestigious reputation in the Australian power sector requires unwavering adherence to international IEEE and IEC standards. These frameworks provide the benchmarks for ratio tolerances and phase deviation, ensuring that every asset on the grid performs with absolute reliability. For site audits and insurance compliance, the use of NATA-traceable calibration is non-negotiable. It provides the documented certainty that your measurements are accurate and your diagnostic conclusions are sound. Power transformers must maintain a measured ratio within 0.5% of the nameplate rating to be considered compliant.

Technical Nuances: Beyond the Basic Ratio

While the foundational principles of induction are elegant in their simplicity, the reality of field diagnostics demands a more sophisticated approach. Transformer turns ratio testing in a high-voltage environment is rarely as simple as comparing primary and secondary volts. Real-world factors, such as excitation current and phase angle deviation, provide the nuanced data necessary to distinguish a healthy asset from one on the verge of failure. Excitation current, specifically, acts as a sensitive barometer for core condition; any unexpected rise in this value can signal shorted laminations or magnetic circuit abnormalities that a simple ratio check might overlook. For those seeking a deeper dive into the underlying physics, this Transformer Turns Ratio Testing guide offers an excellent technical baseline.

The choice between step-up and step-down excitation methods also influences the fidelity of your data. Traditionally, exciting the high-voltage winding (step-down) is the preferred standard. This method ensures that the secondary voltage remains at a safe, measurable level while providing a more accurate reflection of the turns ratio under service-like conditions. When dealing with complex vector groups, true three-phase testing offers an unrivalled advantage over traditional per-phase methods. It captures the interaction between phases simultaneously, which is essential for identifying subtle winding shifts or core defects that only manifest when the entire magnetic circuit is energised. Securing the most advanced digital transformer turns ratio meter hire ensures your team has the precision required to interpret these subtle shifts with absolute confidence.

Vector Configurations and Their Impact

Delta-Wye (Dy) configurations and other complex vector groups once required laborious manual calculations to account for phase shifts. Modern digital meters now perform these compensations automatically, allowing for seamless testing across various connection types. However, the accuracy of the result still hinges on meticulous lead placement. Incorrect connections don't just produce errors; they can lead to misleading phase angle readings that suggest phantom winding shifts, potentially triggering unnecessary and costly maintenance investigations.

The Role of Test Voltage

Large power transformers often require higher test voltages, typically up to 100V, to achieve a stable magnetic flux and reliable readings. Low-voltage excitation can sometimes result in signal noise or insufficient flux, which obscures the true condition of the windings. Using a higher test voltage provides the clarity needed to ensure the core is sufficiently excited without being driven into saturation. Ultimately, excitation current is a key indicator of core condition, revealing magnetic anomalies that lower-voltage tests might fail to excite effectively.

Overcoming Common Challenges in Field TTR Testing

Field diagnostics in the Australian power sector require more than just technical knowledge; they demand a refined approach to the unpredictable environment of a working substation. Performing transformer turns ratio testing under the scorching summer sun or amidst the high electromagnetic interference of a live yard can introduce variables that a laboratory setting simply doesn't account for. One of the most intricate tasks is managing On-Load Tap Changers (OLTC). Professionals must meticulously test across every tap position to ensure the entire range of the winding is intact. A deviation on a single tap might suggest a mechanical misalignment or a localized contact issue, while a consistent trend across all positions points toward a more systemic winding problem.

Interpreting these results requires a sophisticated eye. While the 0.5% tolerance standard is your benchmark, you must distinguish between a minor measurement error and a genuine asset failure. Inconsistent readings often stem from poor lead contact or high resistance at the bushings. However, if the ratio remains stubbornly out of tolerance, it's time to look at the broader picture. We often see a direct correlation between ratio abnormalities and the results of transformer oil breakdown voltage testing. When the insulating fluid begins to degrade, it often heralds the same insulation deterioration that causes turns ratio deviations. This holistic view of asset health ensures that no detail is overlooked in your diagnostic interrogation.

Troubleshooting Inconsistent Readings

If your results feel erratic, start with the basics. Check your lead contacts for oxidation or loose connections, as even a few ohms of resistance can skew a digital reading. Residual magnetism is another frequent offender, particularly if the transformer recently underwent DC winding resistance testing. This stored magnetic energy can interfere with the flux during transformer turns ratio testing, leading to false failures. A proper demagnetization cycle or re-testing with a higher excitation voltage usually restores the clarity you need to make an informed decision. Verifying tap changer mechanical alignment through ratio trends over time can also reveal wear before it leads to a total failure.

Safety Protocols for High-Voltage Environments

Safety is the hallmark of a true professional. Before any leads are attached, proper grounding and isolation must be verified with absolute certainty. In Australian switchyards, the risk of induced voltages from adjacent energized lines is a constant presence that requires vigilant management. Every technician must perform a rigorous "dead-site" verification to confirm the asset is completely de-energized and safe for testing. These protocols don't just protect the equipment; they ensure the safety of your most valuable asset, your people, while maintaining the prestige of your professional operations.

Selecting the Optimal TTR Meter for Australian Industrial Environments

Selecting the right instrumentation is a defining choice for any elite engineering team. In the high-stakes world of power distribution, the tools you carry reflect your commitment to uncompromising accuracy and professional prestige. When it comes to transformer turns ratio testing, the debate between handheld agility and bench-top power is central to operational efficiency. Handheld units offer remarkable freedom for technicians navigating the cramped confines of secondary substations or remote pad-mount transformers. However, for massive Generator Step-Up (GSU) transformers found in power stations, bench-top units remain the superior choice. These larger instruments provide the high-current excitation necessary to overcome signal noise and provide stable readings on the most substantial magnetic circuits.

The evolution from manual null-balance bridges to automatic digital balancing has fundamentally reshaped field diagnostics. Modern automatic meters don't just save time; they act as a vital safeguard against human error. By removing the need for manual dial-turning and subjective interpretation, these systems ensure that every reading is objective and repeatable. This level of precision is further enhanced by sophisticated data logging capabilities. Bluetooth connectivity and integrated reporting software allow for the instant generation of compliance documentation, ensuring that site audits are passed with the same ease and elegance that defines your overall service delivery. For those who value a legacy of excellence, brands like Fluke and Megger continue to be the preferred choice for Australian professionals who refuse to settle for anything less than the gold standard.

Key Features to Look For

Australian industrial sites, from the dusty Pilbara to the humid tropics of Queensland, demand equipment that is as resilient as it is precise. A ruggedized casing is essential for protecting sensitive electronics against vibration and extreme temperatures during transport and operation. Beyond physical durability, look for instruments that offer high-current excitation to ensure clear signals on large-scale assets. Bluetooth connectivity or built-in thermal printers are no longer mere luxuries; they are essential tools for providing clients with immediate, verifiable proof of asset health while still on-site.

The Importance of Multi-Functionality

Modern diagnostic strategies often require more than a single data point to form a complete picture of asset health. Integrating transformer turns ratio testing with winding resistance measurements in a single instrument provides a more holistic view of the transformer's internal condition. This synergy extends to broader substation commissioning, where TTR data is often correlated with results from circuit breaker analyzers to ensure the entire protection and transformation chain is functioning perfectly. "One-box" transformer test systems offer an exceptionally efficient solution by reducing the number of lead changes required and minimizing the risk of connection errors during complex testing sequences. To ensure your next project is powered by the finest technology available, consider the advantages of our premium digital transformer turns ratio meter hire solutions.

Strategic Advantages of Renting Digital Transformer Turns Ratio Meters

In an era where the Australian power grid is undergoing a profound transition, the ability to remain agile is a hallmark of the most successful firms. Transitioning from asset ownership to a strategic rental model for transformer turns ratio testing equipment allows your organization to pivot rapidly in response to network demands. By opting for high-tier rental solutions, you secure immediate access to the latest NATA-certified technology without the burdensome capital outlay associated with purchasing specialized instrumentation. This approach preserves your capital for core infrastructure investments while ensuring your technical teams are always equipped with the industry's most refined diagnostic tools.

The hidden costs of ownership, such as maintenance cycles and the logistical complexity of NATA-traceable calibration, can quietly erode project margins. When you choose a premium hire partner, these overheads vanish. Every instrument arrives in pristine condition, fully calibrated and ready for immediate deployment to the field. This level of readiness is particularly vital for large-scale commissioning projects or proactive replacement programs where equipment availability can dictate the pace of progress. Scaling your equipment fleet to match the specific needs of a project ensures that your timelines remain intact and your reputation for reliability remains untarnished.

Maximizing Project ROI

Efficiency is the ultimate luxury in field operations. By utilizing pre-calibrated, ready-to-use instruments, you significantly reduce the downtime often associated with equipment preparation and verification. Our flexible hire terms are designed to mirror the ebb and flow of your requirements, whether you need a single meter for emergency troubleshooting or a comprehensive fleet for long-term site maintenance. This bespoke approach ensures that you only pay for the performance you need, precisely when you need it, maximizing the return on every project hour. Matching the specific meter to the technical requirements of your site ensures that no resource is wasted and every measurement is optimized for clarity.

The Zenith Advantage

At Zenith, we provide more than just equipment; we offer a partnership rooted in excellence and absolute reliability. Our curated inventory features only elite brands such as Megger and Transmille, ensuring that your transformer turns ratio testing is performed with the world's most respected technology. With a national reach that spans the continent, we ensure that your project stays on schedule, regardless of its location or complexity. Our commitment to expert support and rapid deployment means that you're never alone in the field. We invite you to explore our range of digital transformer turns ratio meters for hire and experience a service that is as sophisticated as the assets you maintain.

Elevating Your Diagnostic Standards with Absolute Precision

Mastering the complexities of the modern grid requires a commitment to the highest standards of measurement. We've explored how transformer turns ratio testing serves as a vital diagnostic, revealing the subtle magnetic shifts that precede asset failure. By looking beyond the basic ratio to analyze excitation current and phase deviation, you ensure your maintenance decisions are rooted in technical certainty rather than conjecture. These insights don't just protect equipment; they safeguard the reliability of the entire network.

Selecting the right partner for your instrumentation needs is just as critical as the testing itself. Our collection of elite brands, including Megger and Fluke, ensures you always have access to the finest technology available. With NATA traceable calibration on every instrument and dedicated technical support across Australia, we provide the reassurance you need to maintain peak performance on every site. Our national delivery network ensures your project stays on schedule, regardless of its location or complexity.

Secure Your Precision TTR Meter Rental Today and experience the seamless efficiency of a service designed for the discerning professional. We look forward to supporting your next project with the reliability and prestige your work demands.

Frequently Asked Questions

What is the acceptable tolerance for a transformer turns ratio test?

The acceptable tolerance for power transformers is generally within 0.5% of the nameplate rating as defined by international standards such as IEEE C57.12.90. Australian utilities rely on this benchmark to verify winding integrity during routine inspections. If your transformer turns ratio testing yields results outside this margin, it's a clear signal that the asset requires further diagnostic investigation to prevent a potential failure.

How does a TTR test detect a shorted turn in a transformer?

A shorted turn is detected by a significant deviation from the calculated ratio accompanied by a simultaneous spike in excitation current. Because a shorted turn creates a high-current loop that opposes the main magnetic flux, the meter must draw more current to maintain the test voltage. This diagnostic clarity allows engineers to identify localized insulation failure before the heat generated leads to a catastrophic tank rupture.

Can I perform a turns ratio test on a transformer with an on-load tap changer?

You can and should perform testing on transformers equipped with an on-load tap changer by cycling through every available tap position. This comprehensive approach ensures that the entire physical winding and the mechanical integrity of the tap selector are verified. Inconsistent readings on a specific tap often reveal contact wear or mechanical misalignment that would be missed during a single-position check.

What is the difference between a turns ratio and a voltage ratio?

The turns ratio is the physical relationship between the number of primary and secondary winding turns, while the voltage ratio is the measured output under specific excitation. In an ideal scenario, these figures are identical; however, real-world factors like leakage flux and core losses create slight variances. High-precision meters account for these nuances to provide a reading that accurately reflects the physical state of the windings.

Why is phase angle deviation important during TTR testing?

Phase angle deviation is a critical metric for identifying core abnormalities, winding shifts, or incorrect vector group configurations. A significant shift in the phase angle suggests that the magnetic relationship between the primary and secondary has been compromised, often due to physical movement during a fault or transportation. Monitoring this value provides an extra layer of security beyond the simple numerical ratio.

Is NATA calibration required for transformer testing in Australia?

NATA-traceable calibration is the gold standard for compliance during Australian site audits and insurance reviews. Using NATA-calibrated instrumentation ensures that your diagnostic data is legally defensible and meets the rigorous quality standards expected by major transmission network service providers. It's a mark of professional excellence that guarantees the absolute reliability of your test results in high-stakes environments.

How often should transformer turns ratio testing be performed?

Testing should be performed during initial commissioning, as part of routine maintenance every three to five years, and immediately following any major fault or surge. These intervals allow professionals to trend the health of the insulation over time and identify gradual degradation. Regular transformer turns ratio testing is the most effective way to prevent the long lead times and high costs associated with emergency asset replacements.

What happens if I test a transformer with the wrong vector group setting?

Testing a transformer with the wrong vector group setting will result in significant phase angle errors and incorrect ratio readings. The meter's internal algorithms rely on the correct vector group to compensate for the phase shifts inherent in configurations like Delta-Wye. Entering the wrong setting creates misleading data that can lead to unnecessary and expensive downtime for a perfectly healthy asset.
