Fluke 773 Milliamp Process Clamp Meter: The Ultimate Guide to Precision Loop Testing

What if you could diagnose a failing control loop without ever disconnecting a single wire or risking a costly plant-wide trip? You'll likely agree that the traditional method of breaking a loop to measure a signal is a high-risk necessity that modern engineering should've evolved past. In high-stakes industrial environments, every minute of unplanned downtime can cost an Australian facility upwards of A$22,000 in lost productivity according to 2023 industry benchmarks. This guide reveals how the Fluke 773 revolutionises your troubleshooting workflow by allowing you to measure 4 to 20 mA signals without breaking the loop, ensuring your operations remain pristine and uninterrupted.

Discover why accessing this elite instrument through a premium rental partner is the smartest choice for your next Australian project. We'll explore the technical superiority of this best-in-class tool and demonstrate how to achieve unmatched accuracy in your PLC and transmitter performance checks without the burden of high capital expenditure. Secure the precision you deserve while maintaining the seamless continuity of your most critical systems.

Understanding the Fluke 773: The Zenith of Milliamp Process Testing

The Fluke 773 represents the absolute pinnacle of process calibration technology. For professionals who demand elite performance, it's the premier milliamp process clamp meter designed for non-invasive testing. This tool respects the flow of your operations. By measuring 4-20 mA signals without breaking the loop, it ensures that your critical systems remain live while you diagnose issues. It's a sophisticated solution for those who refuse to settle for anything less than perfection in their diagnostic toolkit.

In the high-stakes world of Australian industrial environments, from the Pilbara's iron ore mines to Queensland's processing plants, uptime isn't just a metric; it's non-negotiable. The Fluke 773 serves as a prestigious partner in maintaining this continuity. It offers an unmatched suite of source, simulate, and measure functions for both DC voltage and current. This versatility provides a seamless experience for the most discerning technicians, allowing them to move through complex diagnostic journeys with total confidence and grace.

The Evolution of Loop Troubleshooting

Traditional electronic test equipment often requires technicians to physically disconnect wires to measure current. This creates a "broken loop" risk that can trigger emergency shutdowns in sensitive PLC systems, potentially costing a facility thousands in lost productivity. The Fluke 773 eliminates this vulnerability entirely through its advanced non-contact clamp. It's a refined approach to a complex task that prioritizes both safety and efficiency. With a 0.2% accuracy rating, this instrument stands as the industry gold standard for precision and reliability.

Key Applications in Process Industries

Precision is the hallmark of success in modern manufacturing and resource extraction. The Fluke 773 excels in several critical areas that define the elite standards of Australian industry:

• Real-time Troubleshooting: Diagnosing transmitters and control valves without interrupting the signal flow, ensuring the journey of production never falters.
• PLC Integration: Testing I/O on programmable logic controllers to ensure every data point is captured with pristine accuracy.
• Legacy Support: Verifying 10-50 mA signals in older control systems still found in established Australian utility networks.
• Voltage Testing: Measuring DC voltage to verify 24V power supplies or testing voltage input signals with the same high-end reliability.

This instrument isn't merely a piece of hardware; it's a gateway to a more efficient and reliable operation. By choosing the Fluke 773, you're investing in a tool that mirrors the high performance and status of your own professional standards. It's about achieving the zenith of what's possible in process maintenance.

Advanced Features: Why the Fluke 773 Outperforms Traditional Tools

The Fluke 773 represents the zenith of process calibration technology. It delivers an unmatched 0.2% accuracy alongside a 0.01 mA resolution. This level of precision is vital for technicians working in critical Australian industrial sectors where every decimal point impacts operational success. The dual backlit display provides immediate clarity. It shows both the mA measurement and the percentage of span simultaneously. This feature eliminates manual calculations and reduces the risk of human error during high-pressure maintenance cycles.

For professionals operating in cramped environments, the detachable clamp and extension cable offer a seamless solution for reaching wires in crowded cabinets. You can clip the clamp onto a wire and then hold the display in a position where it is easy to read. The integrated measurement spotlight ensures absolute visibility in dark junction boxes. This maintains safety and efficiency even in the dimmest panels. When working near volatile environments, adhering to OSHA hazardous location standards is essential. The reliability of this tool supports those rigorous safety protocols by allowing for non-invasive testing that doesn't break the loop.

Source and Simulate Capabilities

Testing system components requires more than just measurement. This instrument allows you to source 4-20 mA signals directly. This provides a controlled environment to verify the integrity of your loop without disrupting the entire system. It includes a built-in 24V loop power supply. This allows you to power and test a transmitter independently. You won't need a secondary power source or a bulky bench supply. During the commissioning of new projects, you can simulate signals to verify how the control system responds. This proactive approach ensures your journey toward a fully operational facility is smooth and predictable.

DC Voltage Measurement and Sourcing

Beyond current loops, this instrument handles DC voltage with elite proficiency. The 0-30V DC range is perfect for verifying 24V power supplies or checking specific voltage I/O signals. You can also use the voltage source function to test input devices that require a 1-5V or 0-10V signal. This versatility makes the tool a premier choice for complex diagnostics. The Fluke 773 effectively replaces three separate instruments in a technician's kit, streamlining your workflow and reducing the weight of your gear. If you're looking to elevate your testing capabilities, you might consider how a premium equipment hire can provide access to these top-tier tools without the upfront capital expense.

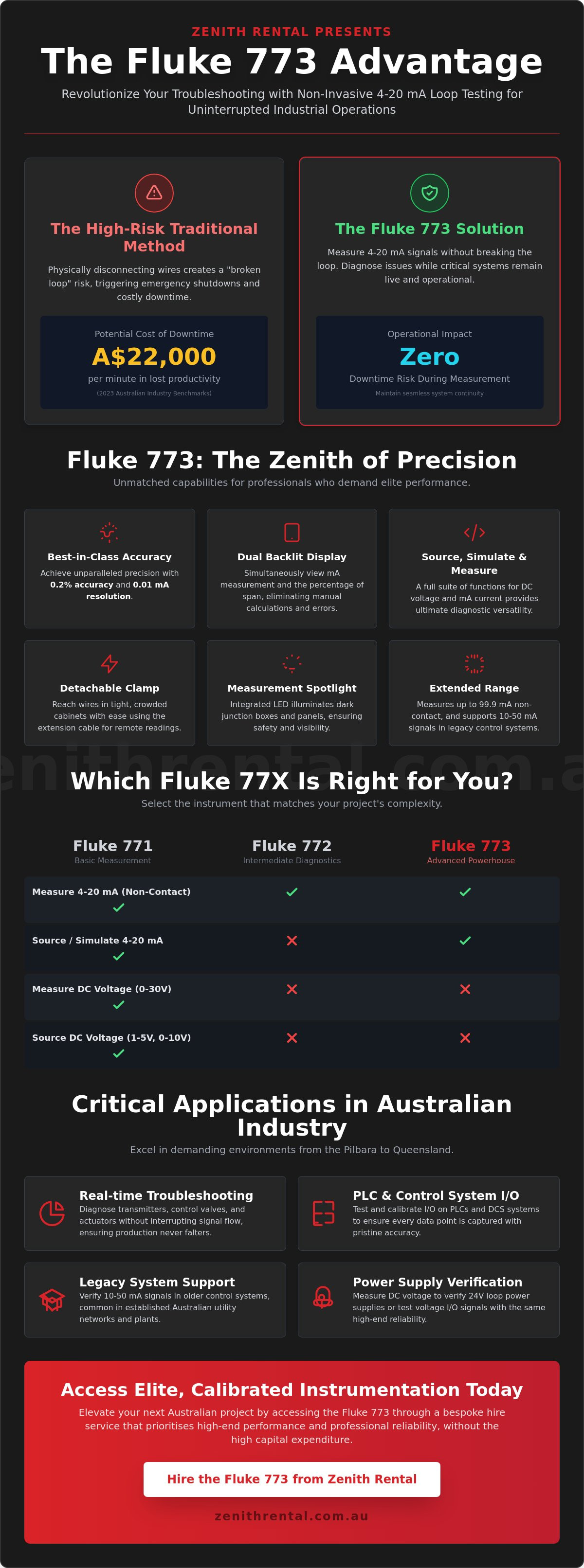

Fluke 771 vs. 772 vs. 773: Selecting the Right Instrument for Your Project

Achieving the pinnacle of process efficiency requires tools that match the complexity of your infrastructure. The Fluke 77X series offers a clear progression of capability, designed to meet the rigorous demands of Australian industrial environments. While each model maintains Fluke's reputation for absolute reliability, the choice between them depends entirely on your diagnostic depth and the sophistication of the systems you manage.

The Fluke 771 serves as the essential foundation for any professional toolkit. It's a "measure only" instrument designed for technicians who need to verify 4 to 20 mA signals without breaking the loop. It's the perfect companion for routine maintenance checks where speed and non-invasive testing are the priorities. It's a streamlined solution for those who value efficiency in high-pressure environments.

Stepping up to the Fluke 772 introduces active troubleshooting capabilities. This mid-tier powerhouse adds mA sourcing and 24V loop power to the mix. It allows you to simulate a transmitter or power a loop during commissioning, providing a more comprehensive service than the entry-level model. For technicians moving beyond simple observation into active system validation, it's a significant upgrade.

For those who demand the ultimate in diagnostic precision, the Fluke 773 stands alone. It represents the zenith of the series, incorporating every feature of its predecessors while adding DC voltage sourcing and measurement. This makes it an indispensable asset for elite instrumentation projects where versatility is the key to success.

When to Step Up to the Fluke 773

Modern instrumentation often requires more than just milliamp readings. The Fluke 773 provides DC voltage sourcing to test I/O on PLC and DCS systems, a critical requirement for commissioning 1 to 5V or 0 to 10V signals. Its unique mA in/out function allows you to measure a signal while simultaneously sourcing a scaled mA output to another device. This seamless workflow is essential for deep-dive diagnostics and complex system calibrations where accuracy is non-negotiable. It's the elite choice for commissioning teams who refuse to carry multiple meters when one pristine instrument can do it all.

Technical Comparison Breakdown

While the 771 offers a respectable 0.2 percent accuracy for measurement, both the 772 and 773 provide that same 0.2 percent accuracy across sourcing functions. This ensures your data remains beyond reproach. Before committing to a specific model, reviewing the Fluke 773 official specifications ensures your chosen tool aligns with your project's technical requirements.

• Measurement Range: All models handle 0 to 20.99 mA via the clamp; the 772 and 773 add 0 to 99.9 mA measurement via test jacks.
• Voltage Sourcing: Exclusive to the 773 model, providing 0 to 10V DC for comprehensive signal testing.
• Loop Power: Both the 772 and 773 provide a 24V loop power supply, allowing you to power and measure a transmitter simultaneously.
• Physical Profile: All models feature a compact, detachable clamp for tight spaces, ensuring a comfortable experience in the field.

Choosing the right tool is about more than just features; it's about the confidence that your equipment won't let you down. Whether you're performing a quick check or an exhaustive system overhaul, selecting the appropriate Fluke 77X model ensures a smooth journey toward operational excellence.

Maximising On-Site Efficiency: Practical Troubleshooting with the Fluke 773

Achieving the pinnacle of operational uptime requires more than just basic tools; it demands a sophisticated approach to diagnostics. When a 4-20 mA loop falters, the Fluke 773 allows you to isolate the fault without breaking the circuit. Start by clamping the detachable jaw onto the wire. This non-contact method eliminates the risk of accidental plant shutdowns, a critical safety advantage in high-voltage Australian industrial environments where a single minute of downtime can cost upwards of A$5,000. If the reading is erratic, move to the transmitter terminals. By sourcing a precise mA signal directly into the loop, you'll quickly determine if the wiring or the transmitter is the culprit.

For intermittent issues that elude immediate detection, the Fluke 773 offers a seamless solution. Connect the mA output to a separate logging device to capture trends over a 24-hour period. This data-driven strategy identifies subtle shifts that occur outside of standard shift hours. It ensures your facility maintains its elite performance standards by catching "ghost" signals before they lead to a total system failure. This level of detail transforms a standard technician into an elite concierge of site reliability.

Testing Control Valves and Positioners

Precision is non-negotiable for valve performance. Use the mA source function of the Fluke 773 to drive a valve through its full 0% to 100% range. This process reveals "sticktion" or non-linear responses that suggest mechanical wear or internal debris. The ability to measure the feedback signal while simultaneously sourcing the command signal provides an unmatched level of clarity. You'll calibrate positioners with absolute confidence, ensuring the journey of every process fluid is perfectly controlled without needing an external power supply.

PLC and DCS I/O Verification

Verifying the integrity of your control system is essential for site-wide reliability. Inject a 12.00 mA signal directly into the PLC input to confirm that the software scales this to exactly 50% on the HMI. To ensure the controller's logic is functioning correctly, measure the DCS output directly. This rigorous verification ensures every component in the chain meets the highest standards of precision. For those managing complex projects, referencing The Definitive Guide to Test Equipment Hire in Australia ensures your site remains compliant with the latest industry benchmarks.

Elite Instrumentation Hire: Why Professionals Choose Zenith Rental for Fluke 773 Access

Achieving absolute precision in Australian industrial environments requires more than just high-end tools; it demands a partnership with a provider that understands the gravity of your project. Choosing Zenith Rental for your Fluke 773 access transforms a logistical requirement into a strategic advantage. We provide an elite fleet of instruments that arrive in pristine condition, ready for immediate deployment on your most critical loops. This isn't just about tool hire. It's about securing the reliability your reputation depends on.

For many facilities, maintaining an internal inventory of specialized meters is a burden that detracts from core operations. Hiring for specific project durations, such as a 14-day shutdown or a month-long commissioning phase, ensures you're always using the latest Fluke technology without the long-term depreciation. It's about agility and excellence. Our logistics team operates with the precision of a concierge service, handling the complexities of transport and timing so you can focus on technical execution. This seamless approach reflects our commitment to professional authority in the instrumentation field.

The Benefits of the Zenith Rental Model

Managing a fleet of test equipment involves hidden costs that quickly accumulate. By opting for our rental model, you eliminate the expenses associated with storage, insurance, and the A$800 to A$1,200 typically required for annual high-tier calibrations. You can learn more about Managing Test Equipment Costs Effectively through our dedicated resource. Our clients gain immediate access to the Fluke 773, ensuring their teams work with best-in-class tools exactly when they're needed. This model allows for:

• Reduced Overhead: No capital expenditure for equipment that sits idle between projects.
• Technological Edge: Always use the most current versions of Fluke software and hardware.
• Scalability: Easily increase your tool count for large-scale industrial audits or shutdowns.

Ensuring Compliance and Accuracy

Australian industrial audits demand rigorous documentation and absolute transparency. Every Fluke 773 in our collection comes with NATA traceable calibration, providing the ultimate peace of mind for site managers and engineers. We verify every unit against strict performance standards before it leaves our facility. This dedication to accuracy ensures your results are beyond reproach during critical safety inspections and regulatory reviews. We don't just deliver a meter; we deliver the confidence that your data is flawless. Experience the Zenith of precision—hire the Fluke 773 today.

Elevate Your Troubleshooting to the Zenith of Accuracy

Precision in process control isn't just a requirement; it's the hallmark of professional excellence. By integrating the Fluke 773 into your workflow, you're choosing a tool that delivers 0.2% accuracy without ever breaking the loop. This seamless capability reduces downtime by eliminating the 15 to 20 minutes typically lost to circuit disconnection and reconnection at every test point. It's the difference between a standard job and an elite performance that commands respect in the Australian industrial sector.

At Zenith Rental, we provide more than just equipment; we offer a pristine service experience tailored for those who demand the best. Every instrument in our fleet arrives with NATA traceable calibration included, ensuring your data stands up to the most rigorous audits. We back your project with Australia-wide express delivery and expert technical support from our dedicated instrumentation specialists. Secure your Fluke 773 rental for your next project at Zenith Rental and experience the ease of working with a premium partner. Your next project deserves the reliability of world-class instrumentation.

Frequently Asked Questions

Can the Fluke 773 measure signals without breaking the loop?

Yes, the Fluke 773 measures 4 to 20 mA signals without breaking the circuit. This non-invasive technique eliminates the risk of downtime or accidental process trips on your site. By simply clamping the detachable jaw onto the wire, you maintain the integrity of your instrumentation loop. It's a seamless solution for busy Australian industrial facilities where every minute of uptime represents vital operational value.

What is the difference between the Fluke 772 and the Fluke 773?

The primary difference lies in the expanded versatility of the Fluke 773. While the 772 focuses on current, the 773 adds DC voltage sourcing and measurement capabilities up to 30V. This allows technicians to test voltage input devices with elite precision. It also features a unique mA in/out function, providing a 24V loop power supply for comprehensive transmitter testing that the 772 cannot match.

Does the Fluke 773 require an internal fuse for protection?

No, the Fluke 773 doesn't require an internal fuse for its primary clamp measurements. Its advanced electronic design includes built-in protection against over-voltage conditions up to 30V on the test terminals. This eliminates the frustration of blown fuses during critical site audits. You can rely on this robust engineering to maintain a pristine workflow without the need for frequent hardware replacements or maintenance delays.

Can I use the Fluke 773 to source DC voltage for testing?

You can absolutely use the Fluke 773 to source DC voltage for testing purposes. It provides a precise 0 to 10V DC output, which is essential for verifying the performance of voltage-input instruments and control valves. This feature elevates the tool from a simple meter to a comprehensive diagnostic suite. It ensures your systems operate at the pinnacle of efficiency by simulating exact control signals during commissioning.

Is the Fluke 773 suitable for testing 10-50 mA legacy systems?

The Fluke 773 is perfectly suited for testing legacy 10-50 mA systems found in older Australian industrial plants. While modern loops typically use 4-20 mA, this device measures up to 99.9 mA with its detachable clamp. This capability ensures you have the elite flexibility to manage both contemporary and heritage infrastructure. It's a reliable partner for technicians overseeing diverse facilities that require 0.2 percent accuracy across all ranges.

How accurate is the Fluke 773 compared to a standard multimeter?

The Fluke 773 offers a superior 0.2 percent accuracy rating for mA measurements, which often surpasses standard industrial multimeters. Many general-purpose meters introduce 0.5 percent or higher error margins when measuring low-level current loops. This precision ensures that your 4-20 mA signals are calibrated to the exact specifications required for high-performance automation. It delivers the absolute reliability demanded by Australia's most sophisticated process control environments.

What accessories are included with a Fluke 773 rental from Zenith?

Every rental from Zenith arrives in a pristine, professional carry case. We include high-quality TL75 test leads, AC280 SureGrip alligator clips, and a fresh set of AA alkaline batteries to ensure your journey begins immediately. You'll also find a current calibration certificate and a quick reference guide. This curated package reflects our commitment to providing a seamless, premium experience for every client.

How often does the Fluke 773 require calibration for site compliance?

To maintain site compliance and peak performance, the Fluke 773 requires professional calibration every 12 months. This 1-year interval aligns with ISO 9001 standards and Australian industry best practices for precision instrumentation. Adhering to this schedule ensures your measurements remain within the 0.2 percent accuracy specification. Zenith manages this process meticulously for our fleet, so you always receive a device that meets the highest benchmarks of quality.
